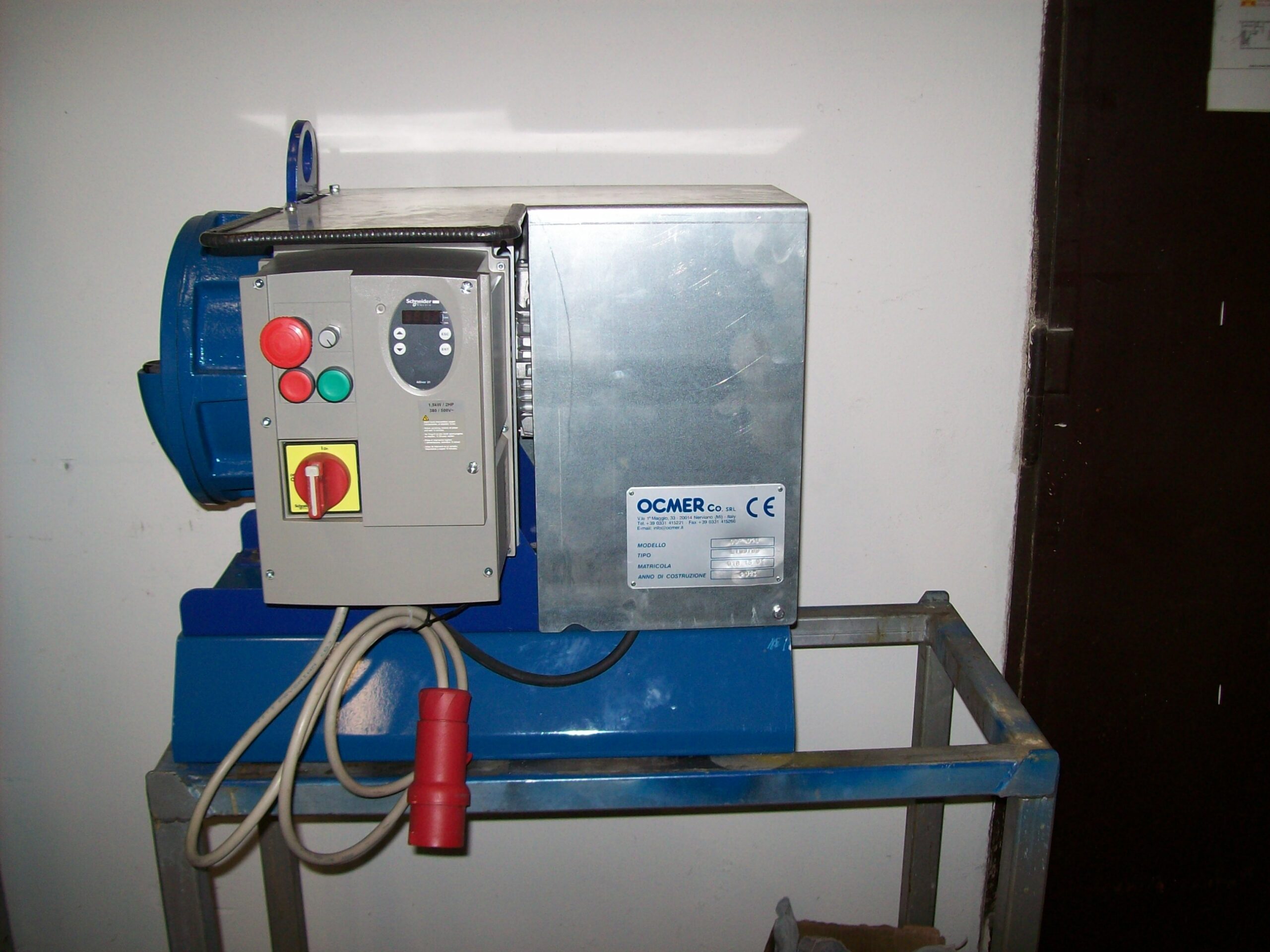

OCMER ODP-018 LIQUIDO enables the accurate dosage of the concrete liquid chemical admixtures.

Typical applications can be found in the execution of sprayed concrete linings, where is normally required the use of liquid quick setting accelerators.

A peristaltic dosing pump driven from a motor-inverter allows to set infinitely the required output that is visualized on a digital display in litres/h.

  • ODP-018
  • ODP-018_1
  • ODP-018_2
Click on photo to enlarge

 Weights Kg. 136


Outputs range:
 from 85 to 700 litres/h at 10 bars
Installed power: 1,5 Kw
