OCM 030 compatta Silo

Integrated Refractory Spraying System: Efficient, Safe and Reliable

Main features

  • Simple to use

  • Easy to move

  • Modular

  • Possibility to record and control all production parameters

  • It works continuously without dust even with high pressure inside the delivery line

INTEGRATED REFRACTORY SPRAYING SYSTEM

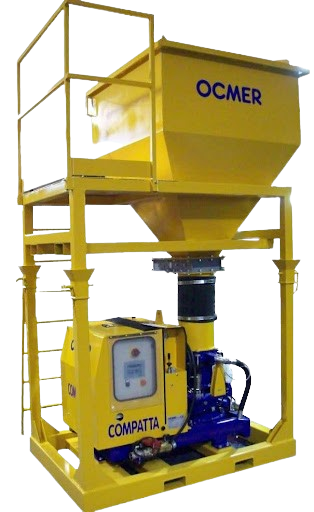

Like the OCM-016 SIMPLEX, the OCM-030 COMPACT can also be mounted inside a loading silo structure, eliminating the need to power the machine and allowing a single operator to perform routine maintenance operations on furnaces and ladles.

The station configuration is fine-tuned based on the customer's needs for control, recording and transmission of production parameters.

As an example, reference can be made to the model OAFM 030 S 4.0.

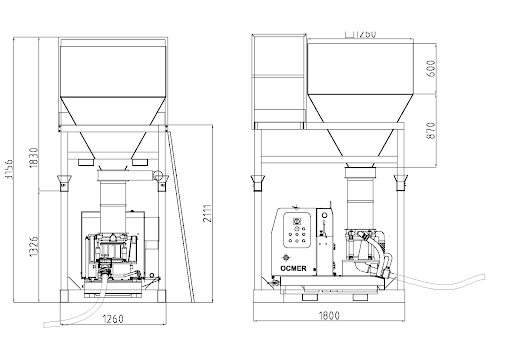

Weight 1300 kg - Silo capacity 1500 Lt (other cubages on request)

Capacity of the Rotor in Litres
1,8
3,2
3,4
5
6
Max. Theor.(1) output in Mc/h
1,51
2,69
2,86
4,20
5,4
Hose Size
25X40
32X48
32X48
40X60
32X48
40X60
40X60
50x70
50X70
Grain size in mm
8
10
10
13
10
13
13
16
16
Delivery Distances in Mt | Horiz/Vert.
500/100
500/100
500/100
500/100
500/100
500/100
500/100
500/100
500/100
Compressed Air Consumption In Mc/M At 4-6 Bars
2-4
3-5
3-6
4-7
3-6
4-7
5-8
6-10
6-12

Your description here…

016 simplex

Electric Drive

  • Installed power: from 3.5 to 5.5 Kw (varies depending on the options required), 3 x 400 V 50/60 Hz (other voltages on request)
  • Effective flow rate: 0.3 to 4 M3/h
  • Compressed air consumption: from 5,000 to 10,000 litres/m at 7-8 bars
  • Electrical panel compliant with: CEE (EN-60204-1; EN-60439-1; 73/23/EEC; 93/68/EEC)
  • Degree of protection: IP 55

Pneumatic Drive

  • Main engine: KW 6,6: KW 6,6
  • Hydraulic power unit motor power: KW 2.96
  • Air consumption: 9.000 litres/m at 7-8 bars
